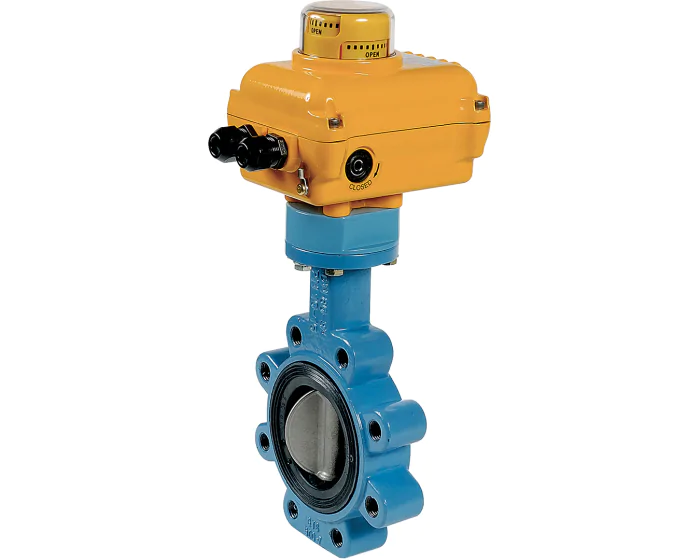

The TTV 1160 LUG butterfly valve has a ductile iron body, a ductile iron or stainless steel disc and an EPDM seat. It is actuated by an SA/NA electric actuator. ACS approval.
| Specification | Value |
|---|---|
| Option certificate 3.1 | Yes |
| Maximum delta P (bar) | 10 |
| Shaft/stem matérial | Stainless steel 420 |
| Manual override | By handwheel |
| Declutchable | Yes |
| DN | DN300 - 12'' |
| Duty service | S2 duty service - 70% |
| Face to Face (mm) | 78.0 |
| Protection index (IP) | IP 67 |
| Torque limiter | Yes |
| Recommended location | Outdoor |
| Seat | EPDM |
| Body material | Ductile iron |
| Number of ways | 2 |
| Disc material | Chrome-plated ductile iron |
| PS (bar) | 10 |
| Power (W) | 60 |
| Connections | Between flanges PN10 |
| Anti-condensation heater | Standard |
| Positive safety | No |
| Function | On-off |
| Electric actuator series | SA/NA series |
| Operating time (s) | 24.0 |
| Voltage | 230 V AC |
| TS max (°C) | 110 |
| TS min (°C) | -15 |
| Butterfly valve design | Concentric |
| Wafer/lug | Lug |
| Warranty period | 1 year |
| CE | Risk category III |
| Range | TTV |
| Fire safe | No |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Between flanges PN10 Ductile iron Concentric 40 | 261303023010 | S1005216 |
€521.00
(excl. btw)
|
add to cart |
| Between flanges PN10 Ductile iron Concentric 50 | 261304023010 | S1005217 |
€530.40
(excl. btw)
|
add to cart |
| Between flanges PN10 Ductile iron Concentric 65 | 261305023010 | S1005218 |
€541.49
(excl. btw)
|
add to cart |
| Between flanges PN10 Ductile iron Concentric 80 | 261306023010 | S1005219 |
€555.86
(excl. btw)
|
add to cart |
| Between flanges PN10 Ductile iron Concentric 100 | 261307023010 | S1005220 |
€572.83
(excl. btw)
|
add to cart |
| Between flanges PN10 Ductile iron Concentric 125 | 261308023069 | S1005221 |
€729.30
(excl. btw)
|
add to cart |
| Between flanges PN10 Ductile iron Concentric 150 | 261309023130 | S1005222 |
€1,208.23
(excl. btw)
|
add to cart |
| Between flanges PN10 Ductile iron Concentric 200 | 261310023130 | S1005223 |
€1,400.87
(excl. btw)
|
add to cart |
| Between flanges PN10 Ductile iron Concentric 250 | 261311023150 | S1005224 |
€1,757.86
(excl. btw)
|
add to cart |
| Between flanges PN10 Ductile iron Concentric 300 | 261312023160 | S1005225 |
€2,043.41
(excl. btw)
|
add to cart |
